Product | Static Pass Box |
Construction | Stainless Steel 304 / 316 / 316L |
Door | Solid door w/ mechanical or electrical interlocked |
Window | Tempered Glass |
Accessories | Hour meter |
Electricals | Hour Meter, Fluorescent light, UV light, Electromagnet for door interlocking, Buzzer and Indicator lamps |
Window | Tempered Glass |
UV Lamp | Optional |

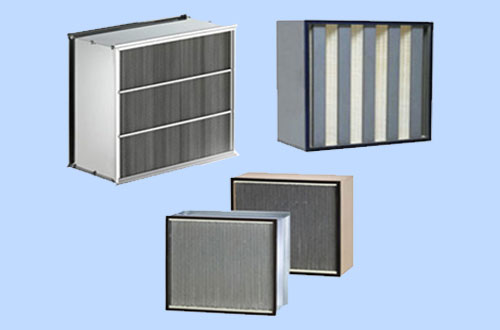

HEPA Filter | Optional |
Filtration efficiency | ≥ 99.99% @ ≥ 0.3μm |
Power Supply | 220 / 230 Volts |
Certifications | CE and ISO |
Product | Dynamic Pass Through Box |
Construction | Stainless Steel 304 / 316 / 316L |
Door | Solid door w/ mechanical or electrical interlocked |
Window | Tempered Glass |
UV Lamp | Optional |
HEPA Filter | Optional |
Suction Filter | Stainless Steel w/ 95% down to 5 µ Efficiency (EU-4 Rating.) |
Supply Filter | Aluminum w/ 99.999% down to 0.001 µ (EU-14 Rating.) |
Blower | Branded Heavy duty |
Noise | <78 |
Power Supply | 220 / 230 Volts |
Accessories | Hour meter, Magnehelic / Minihelic Pressure Gauge |
Electricals | Hour Meter, Fluorescent light, UV light, Electromagnet for door interlocking, Buzzer and Indicator lamps |
Air Shower Facility | Optional |
Cleanliness | Class 100 |
Certifications | CE and ISO |
Area Coverage | Customized |
Working Environment | Up to 30% down from Ambient. |
Controller | Electronic Display Digital % R.H ( Humidity ) |
Sensor | Capacitor type electronic sensor |
Accuracy | +/-3% R.H Uniformity +/-5% R.H |
Outer Chamber | Stainless Steel 304 quality |
Capacity | 1.0 ton to 2.0 ton |
Power Consumption | 7 amps to 12 amps |

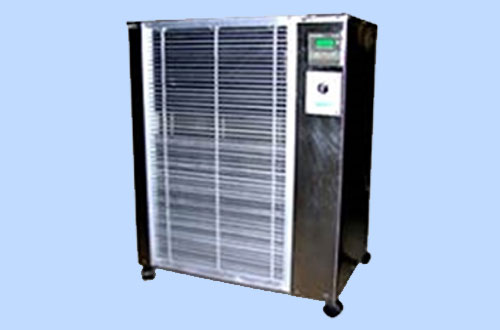

The water Condensing type Dehumidifier pulls the water out of musty air inside the room by passing the air through the heat exchanger and transfer it to the clean room through exhaust.
Humidity Control : Digital Display Humidity controller
Heat Exchanger : The heat exchanger pulls out water from the musty air, condensing into water Droplets and passing the dry air to exhaust.
Air Blower : Specially Designed air circulation blower.
Water Reservoir : Droplet condense from the heat exchanger is collected back into reservoir with external drain connector.

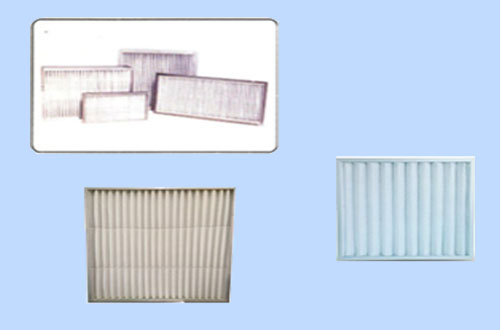

No | Sizes in Inches | Flow ( cfm ) |
---|---|---|
1 | 20 x 12 x 6 | 120 |
2 | 20 x 15 x 6 | 520 |
3 | 20 x 20 x 6 | 700 |
4 | 24 x 24 x 6 | 1000 |
5 | 24 x 24 x 12 | 2000 |
